PROCESSOR SUPPORT	Single Socket AM5 supports AMD EPYC 4005 Series Processors
CORE LOGIC	AMD B650
MEMORY	(4) DDR5 DIMM slots, 2DPC, ECC
MEMORY CAPACITY	Maximum up to 192GB ECC/UDIMM
MEMORY TYPE	DDR5 4800MT/s ECC/UDIMM
MEMORY SIZE	8GB, 16GB, 32GB ECC/UDIMM
EXPANSION SLOTS	Total PCI-E Slots: 1
EXPANSION SLOT TYPE	PCIe 4.0 x16 slot from CPU support FHHL PCIe card
DISK CONTROLLER/ SATA CONTROLLER	Broadcom 9540-8I (Support Software RAID 0/1/10)
STORAGE BAYS I = INTERNAL A OR S WILL BE HOT SWAPPABLE	(2) M.2 2280/22110 PCIe4.0 x4 ports (2) Internal 2.5” drive bays support SATA 2.0 (4) Hot-swap 3.5”/2.5” drive bays support SATA 3.0
NETWORKING LAN	(2) 10GBase-T Ethernet Ports
GRAPHIC VGA	Aspeed AST2600
FRONT I/O PORTS	(2) USB3.2 Gen1 Type-A Ports

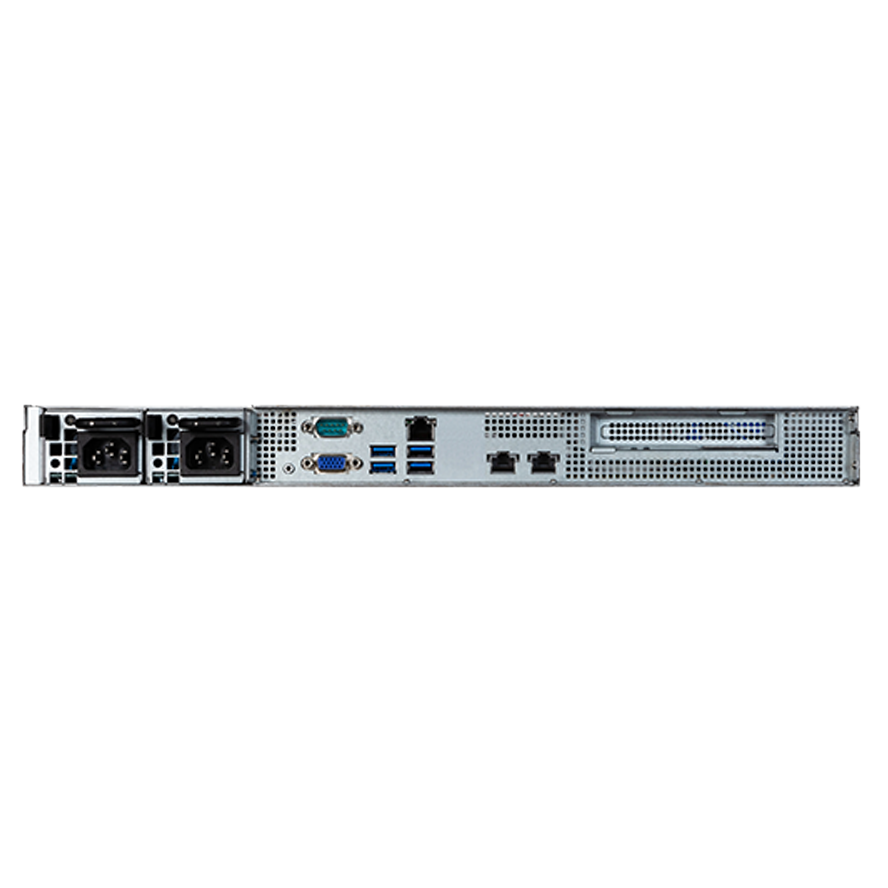

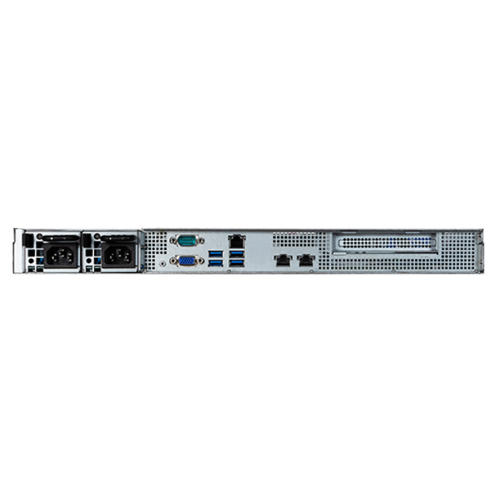

REAR I/O PORTS	(2) 10GBase-T Ethernet Ports (1) 1000Base-T Dedicated Server Management (4) USB3.2 Gen1 Type-A Ports (1) VGA D-Sub Port (1) COM DB9 Port
SWITCH/LED	Rear Switch/LED: (1) UID LED ButtonFront Switch/LED: (5) Status LEDs: Power/Fault/HDD/(2)LAN
OS SUPPORT	Windows Server 2025
MANAGEMENT SOLUTION	ASMB11-iKVM for KVM-over-Internet
DIMENSIONS	17.26”W x 1.71”H x 21.56”D
WARRANTY	5 Year NBD Parts Server Warranty
SUPPORT	Lifetime Tech Support

RAID ARRAYS	RAID arrays are preconfigured per your request and a full burn-in of the hard drives is completed prior to shipping to minimize the chance of DOA components and ensure your data will stored on a stable array.
PRE-LOADED SOFTWARE	We can install Windows Server or VMWare for no extra cost and will load all of the latest drivers, updates and even your own personalized image if you prefer.
CUSTOM IMAGES	We can provide custom images (pre-installed virtual machines: Hyper-V/VMware images or application software).
FREE ASSET TAGGING	ByteSpeed will affix you asset tag number to your systems (this includes a spreadsheet of corresponding serial numbers to be sent with your order) at no additional cost.
FREE ASSET TAG IN BIOS	We will flash your asset tag number in the system BIOS (This can be useful if you use an asset management software).
FREE DESCRIPTIVE LABELING	We provide serial number and purchase order number on the box.
FREE MAC ADDRESSES	We can include a spreadsheet of MAC addresses with correspond¬ing the corresponding Bytespeed serial number.
FLEXIBLE SPLIT/DELAYED SHIPMENTS	We will offer hassle-free, split or delayed ship¬ments upon request (we can deliver these in one shipment or installments).
FLEXIBLE BILLING OPTIONS	ByteSpeed offers flexible billing options, enabling you to split billing into payments that are more convenient for your school district.

ABOUT BYTESPEED

RESOURCES

CONTACT US

Get in touch with us

Compute Solutions

Classroom Tech & Furniture

Immersive Technology

SYSTEMS INTEGRATOR SOLUTIONS

NETWORKING & PHYSICAL SECURITY

Cybersecurity & Device Management

Get in touch with us

Contact Support

SUPPORT RESOURCES

SUPPORT SERVICES

Get in touch with us

K-12 Education

Higher Education

Financial Solutions

Healthcare Solutions

Business / Government

HOSPITALITY INDUSTRY

Get in touch with us

Popular Keywords

Categories

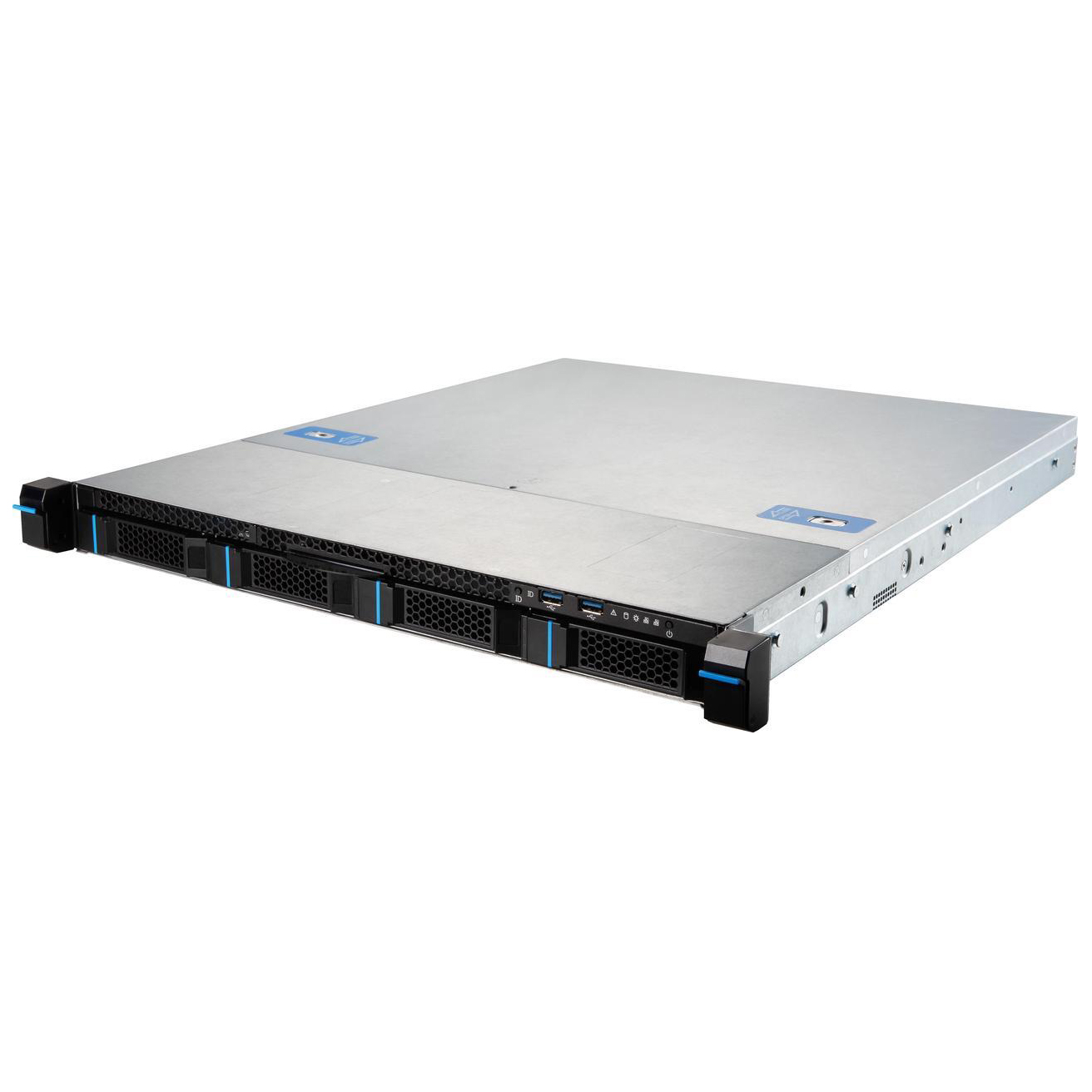

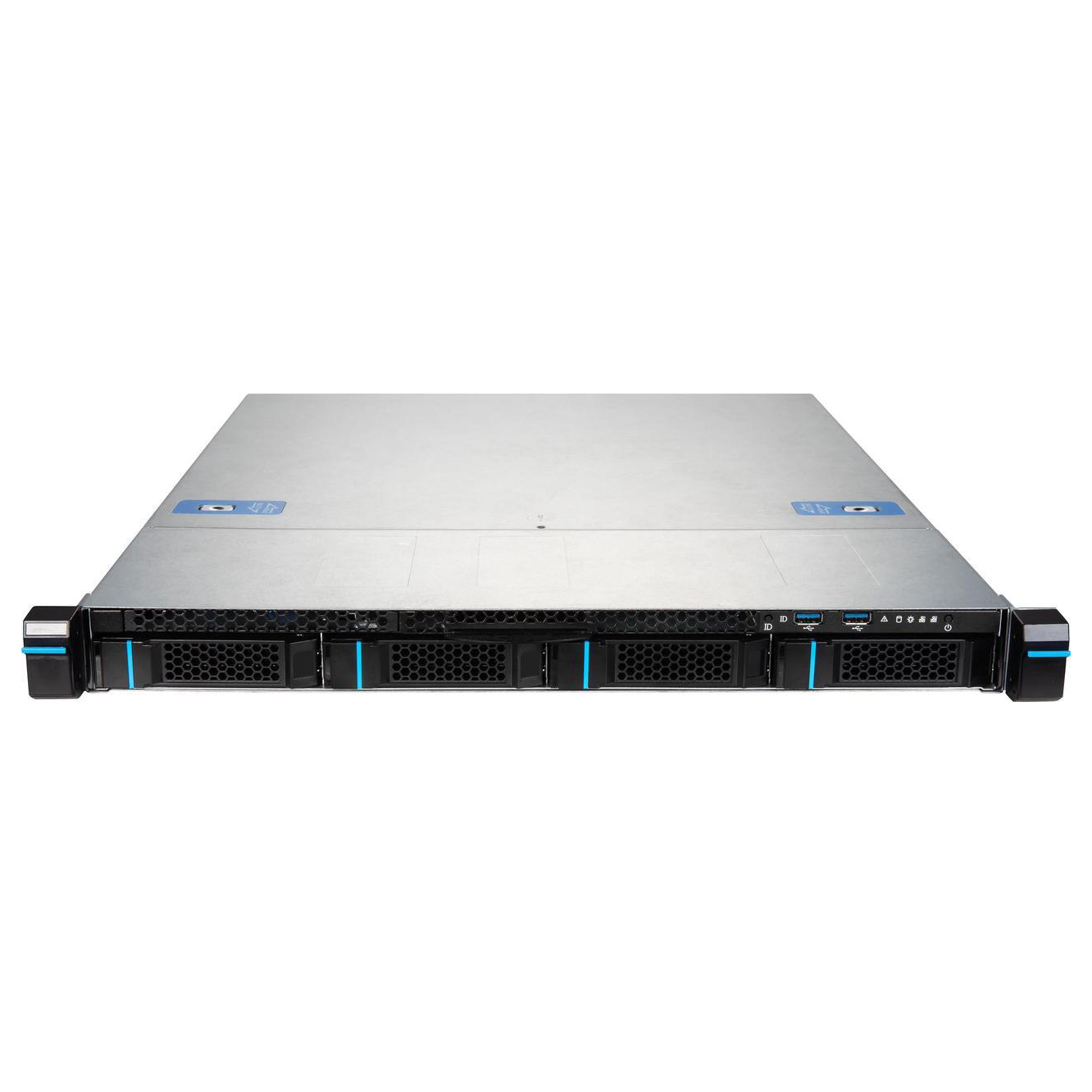

ByteSpeed Server S1102

1U RACK-MOUNTABLE SERVER

WITH VERSATILE EXPANDABILITY

AMD Processor SUPPORT

ENERGY EFFICIENCY

SERVER PERFORMANCE

REQUEST FORM

ByteSpeed Server S1102

Step 1 of 2

PRODUCT FLYER/SPEC SHEET PDF:

DRIVERS & DOWNLOADS:

SUPPORT DOCUMENTS:

ONLINE SUPPORT FORM:

SUPPORT SCHEDULE:

PHONE AND FAX NUMBERS:
