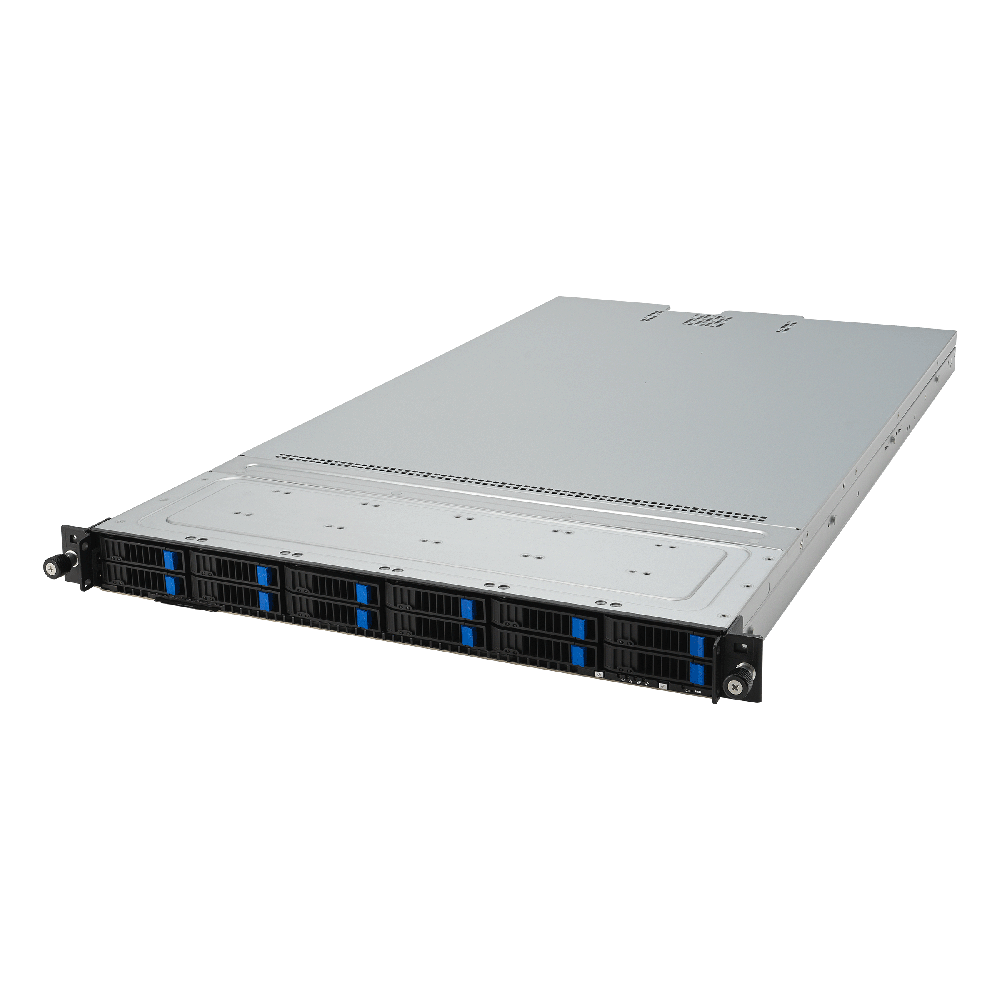

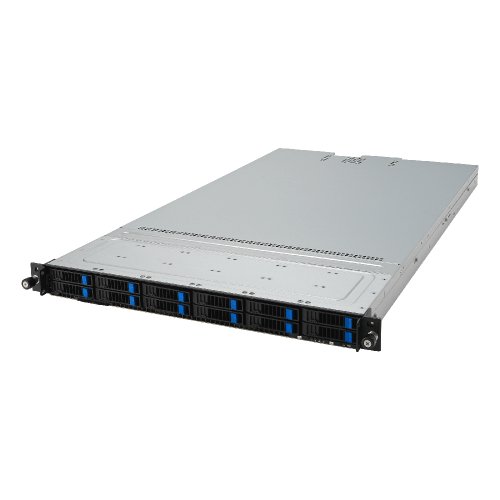

The ByteSpeed Server RS501A-E12 provides powerful performance, powered by AMD EPYC 9005 processors with 192 Zen 5c cores, 12-channel, up to 5200 MHz DDR5 and support for a maximum TDP of up to 360 watts. It features scale-up storage and expansion design, with up to 12 all-flash NVMe drives on the front panel, and three PCIe 5.0 slots for higher bandwidth and system upgrades.
ByteSpeed has many 1U, 2U & 4U chassis and other customization options that aren’t included on our website. Please contact your sales rep for additional options, or call 877-553-0777.
The ByteSpeed Server RS501A-E12 is backed by a 5-year server warranty with next business day parts and lifetime tech support.

Powered by AMD EPYC 9005 processors with 192 Zen 5c cores, 12-channel, up to 5200 MHz DDR5 and support for a maximum TDP of up to 360 watts.

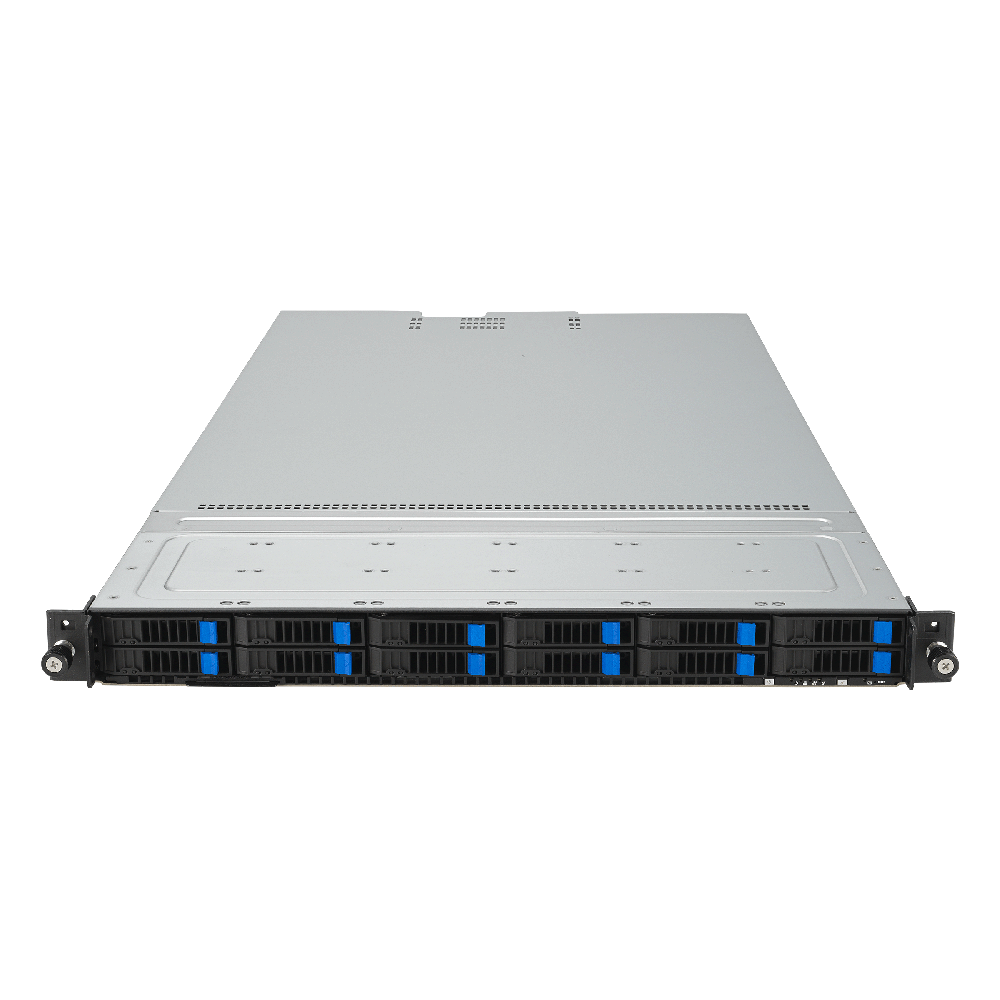

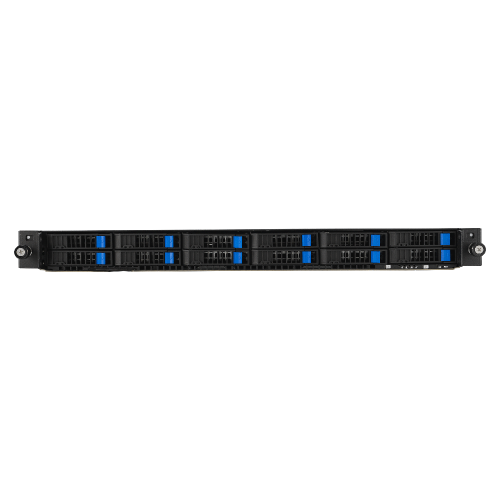

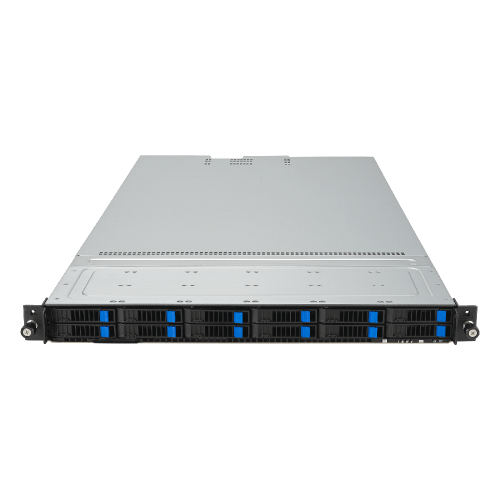

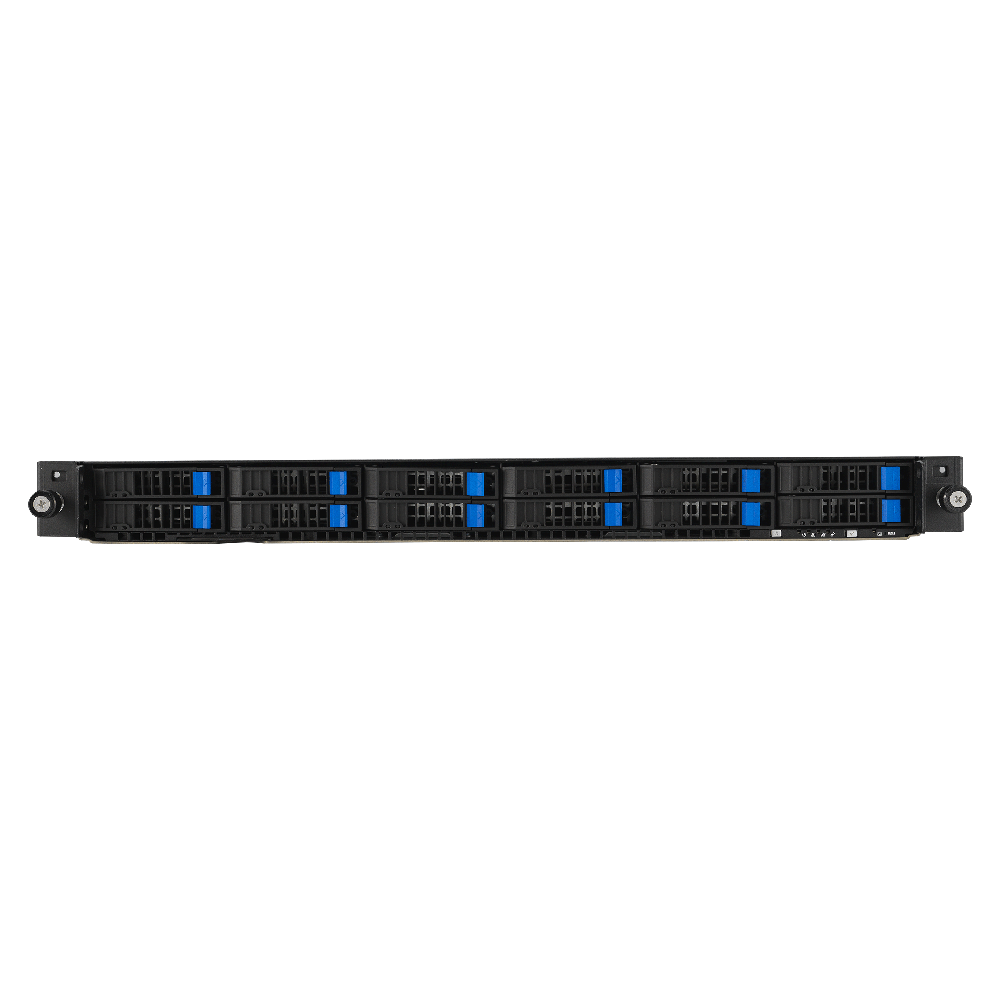

Up to 12 all-flash NVMe drives on the front panel, and three PCIe 5.0 slots for higher bandwidth and system upgrades.

On-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity.
| Processor: | 5th Generation AMD EPYC 9005 |
| OPERATING SYSTEM: | Windows Server 2025 |
| DIMENSIONS: | 33.17″ x 17.68″ x 1.73″ |
| MEMORY: | DIMM Speed 2DPC (1 of 2) up to 5200 with “6400 RDIMM”, other 4800 |
| MEMORY MODULE SLOTS: | 24 DDR5 RDIMM slots Supports registered ECC DDR5 DIMMs only |
| MAXIMUM RAM: | 6TB MAX (2DPC) |
| MANAGEMENT: | ASUS Control Center(Classic) On-Board ASMB11-iKVM for KVM-over-IP |
| POWER SUPPLIES: | 1+1 Redundant 1600W 80 PLUS Platinum |
| STORAGE CONTROLLERS: | GRAID Supreme RAID Core Adaptec 9560-16i Adaptec 9660-16i |
| RAID: | HW RAID 0, 1, 5, 6, 10, *Depending on Controller |
| STORAGE: | [OPTION 1] Front bays: 12 x 2.5” Hot-Swap drive bays 12 x SATA/SAS/NVMe |
| SLOTS: | Up to 3 PCIe Gen5 slots + 1 OCP3.0 1 x PCIe x16 slot (Gen5 x16 link, FH, HL) 1 x PCIe x16 slot (Gen5 x16 link, LP, HL) 1 x PCIe x16 slot (Gen5 x8 link, LP, HL) 1 x OCP3.0 socket (Gen5 x16 link) |
| RACK SUPPORT: | RAIL KIT |
| NETWORK OPTIONS: | INTEL E810, 10/25GBE SFP28 x 2 INTEL E810 10/25GBE SFP28 x 4 INTEL E610-XT2 RJ45 COPPER x 2 |

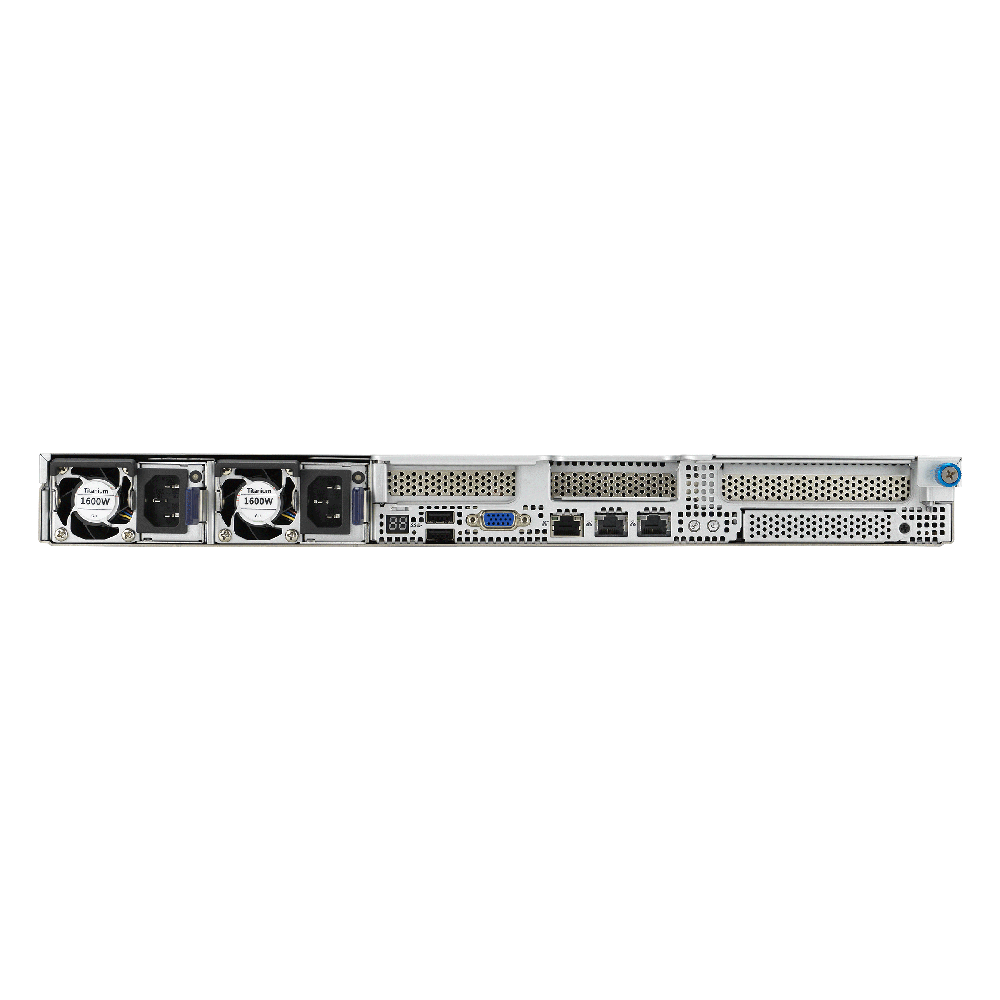

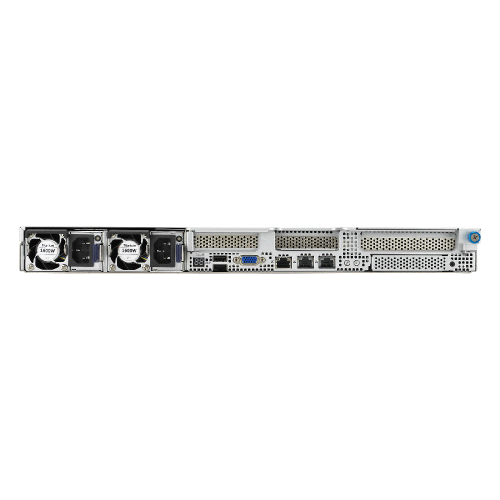

| REAR PORTS: | 2 x USB 3.2 Gen1 ports 1 x VGA port 1 x Management port 2 x 1GbE LAN ports |
| WARRANTY: | 5 Year NBD Parts Server Warranty |
| SUPPORT: | Lifetime Tech Support |
| RAID ARRAYS | RAID arrays are preconfigured per your request and a full burn-in of the hard drives is completed prior to shipping to minimize the chance of DOA components and ensure your data will stored on a stable array. |
| PRE-LOADED SOFTWARE | We can install Windows Server or VMWare for no extra cost and will load all of the latest drivers, updates and even your own personalized image if you prefer. |
| CUSTOM IMAGES | We can provide custom images (pre-installed virtual machines: Hyper-V/VMware images or application software). |
| FREE ASSET TAGGING | ByteSpeed will affix you asset tag number to your systems (this includes a spreadsheet of corresponding serial numbers to be sent with your order) at no additional cost. |
| FREE ASSET TAG IN BIOS | We will flash your asset tag number in the system BIOS (This can be useful if you use an asset management software). |
| FREE DESCRIPTIVE LABELING | We provide serial number and purchase order number on the box. |
| FREE MAC ADDRESSES | We can include a spreadsheet of MAC addresses with correspond¬ing the corresponding Bytespeed serial number. |
| FLEXIBLE SPLIT/DELAYED SHIPMENTS | We will offer hassle-free, split or delayed ship¬ments upon request (we can deliver these in one shipment or installments). |
| FLEXIBLE BILLING OPTIONS | ByteSpeed offers flexible billing options, enabling you to split billing into payments that are more convenient for your school district. |
CLICK HERE for 1U Server RS501A-E12 Product Flyer PDF
CLICK HERE for Server RS501A-E12 Drivers & Downloads resources
CLICK HERE for Support Documents
