Processor:	Up to two 5th Generation Intel Xeon Scalable processors with up to 64 cores per processor
OPERATING SYSTEM:	Windows Server 2019 Windows Server 2022 ESXi 8.0
DIMENSIONS:	3.46″H x 17.68″W x 33.07”D
MEMORY:	DIMM Speed Up to 4800MT/s
MEMORY MODULE SLOTS:	32 DDR4 DIMM slots Supports registered ECC DDR5 DIMMs only
MAXIMUM RAM:	Up to 8TB depending on the type of RAM
MANAGEMENT:	ASUS Control Center(Classic) On-Board ASMB11-iKVM for KVM-over-IP
POWER SUPPLIES:	1+1 Redundant 1600W 80 PLUS Platinum
STORAGE CONTROLLERS:	Internal Controllers VROC Adaptec SMART HBA 2200-16I Adaptec SmartRAID 3154-16I Adaptec SmartRAID 3254-16I
SOFTWARE RAID:	SW RAID 0, 1, 10, optional 5
STORAGE:	[OPTION 1] Front bays: 12x 3.5”/2.5” hot-swap bay 8 x NVMe/SAS/SATA + 4 NVMe/SATA HBA/RAID card is required to support SAS hard drives
SLOTS:	Up to 9 x Expansion slots 6x PCIe G5 x8 link or 3x PCIe G5 x16 link (FHFL or FHHL) 1x PCIe G5 x16 link (FHHL) 1x OCP 3.0/PCIe Gen5 x16 link (FHHL) 1x PCIe G5 x16, LP
RACK SUPPORT:	RAIL KIT
NETWORK OPTIONS:	Option 1: 1x Quad Port Intel I350-AM4 1G LAN Controller + 1x Mgmt LAN Option 2: 1x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller + 1x Mgmt LAN Option3: 1x Dual Port Intel E810-XXVDA2 25G LAN + 1x Mgmt LAN Or: None x + 1x Mgmt LAN

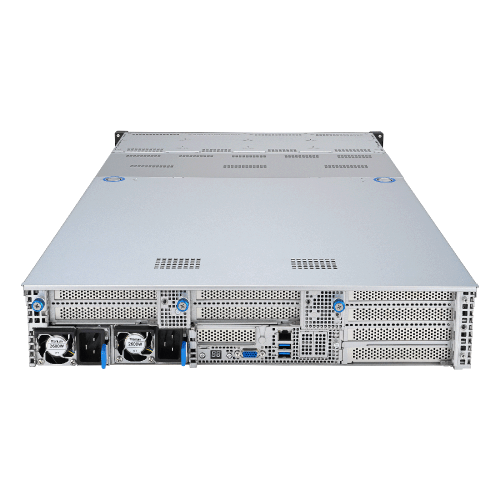

REAR PORTS:	2x USB 3.2 Gen1 ports, 1x VGA port 1x RJ-45 Management LAN port 2x 10G
WARRANTY:	5 Year NBD Parts Server Warranty
SUPPORT:	Lifetime Tech Support

RAID ARRAYS	RAID arrays are preconfigured per your request and a full burn-in of the hard drives is completed prior to shipping to minimize the chance of DOA components and ensure your data will stored on a stable array.
PRE-LOADED SOFTWARE	We can install Windows Server or VMWare for no extra cost and will load all of the latest drivers, updates and even your own personalized image if you prefer.
CUSTOM IMAGES	We can provide custom images (pre-installed virtual machines: Hyper-V/VMware images or application software).
FREE ASSET TAGGING	ByteSpeed will affix you asset tag number to your systems (this includes a spreadsheet of corresponding serial numbers to be sent with your order) at no additional cost.
FREE ASSET TAG IN BIOS	We will flash your asset tag number in the system BIOS (This can be useful if you use an asset management software).
FREE DESCRIPTIVE LABELING	We provide serial number and purchase order number on the box.
FREE MAC ADDRESSES	We can include a spreadsheet of MAC addresses with correspond¬ing the corresponding Bytespeed serial number.
FLEXIBLE SPLIT/DELAYED SHIPMENTS	We will offer hassle-free, split or delayed ship¬ments upon request (we can deliver these in one shipment or installments).
FLEXIBLE BILLING OPTIONS	ByteSpeed offers flexible billing options, enabling you to split billing into payments that are more convenient for your school district.

ABOUT BYTESPEED

RESOURCES

CONTACT US

Get in touch with us

Compute Solutions

Classroom Tech & Furniture

Immersive Technology

SYSTEMS INTEGRATOR SOLUTIONS

NETWORKING & PHYSICAL SECURITY

Device Management

Get in touch with us

Contact Support

SUPPORT RESOURCES

SUPPORT SERVICES

Get in touch with us

K-12 Education

Higher Education

Financial Solutions

Healthcare Solutions

Business / Government

Get in touch with us

Popular Keywords

Categories

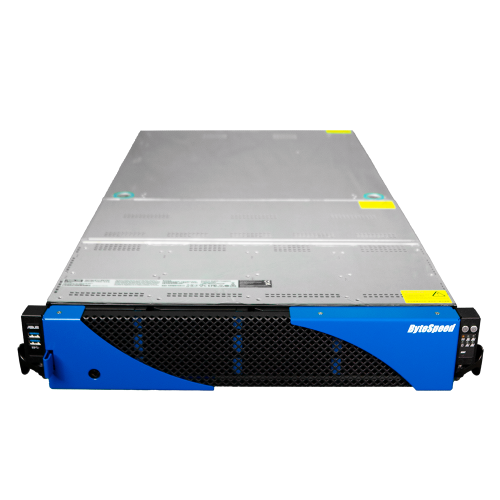

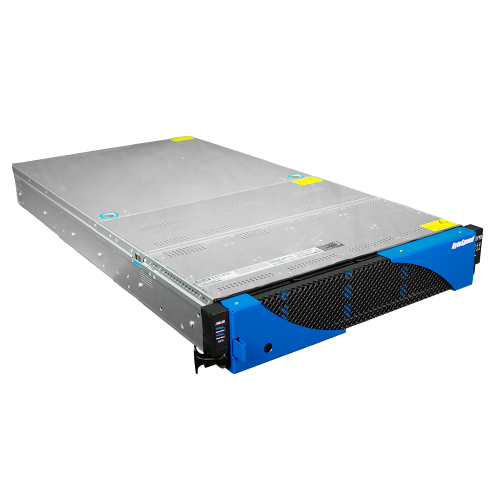

ByteSpeed Server RS720-E11
